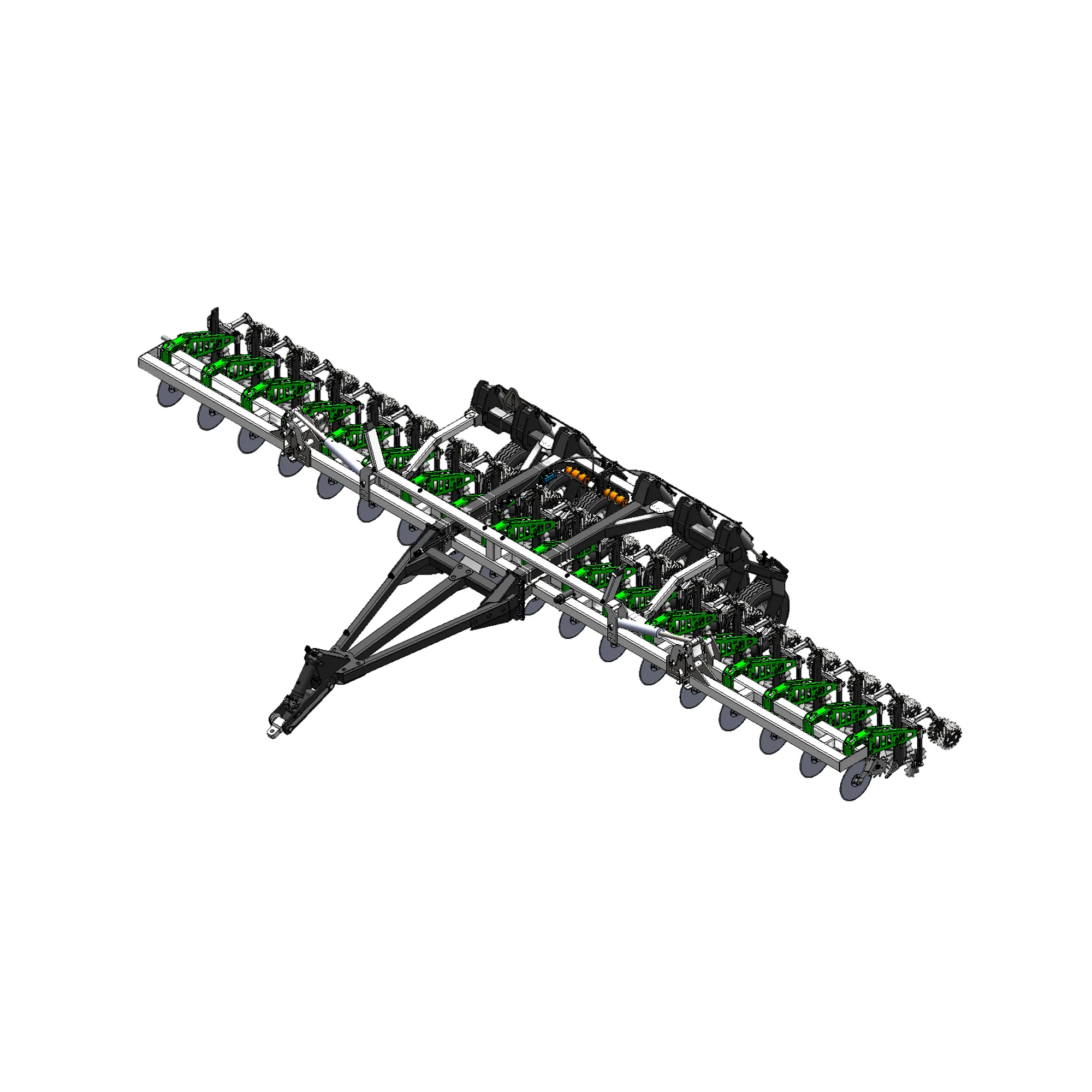

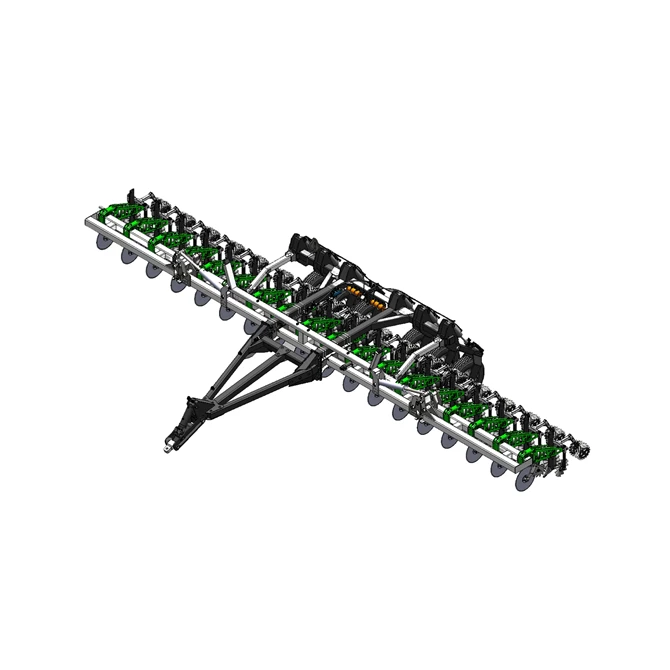

Schlagel AR-5039 12 Row 30" w/ Caddy Mounts Rapid Till AR

Item #: AR-5039

$95,000.00 each

Product Description

Built for rugged terrain and demanding field conditions, the Rapid Till AR features a hydraulic auto-reset shank for consistent deep-tillage performance. The reset system uses a self-contained accumulator that maintains pressure once set, delivering reliable operation without ongoing adjustment.

Common Wear Parts
Coulters and bearings are standard parts that can be found at your local dealership.

Pin Adjustable
Adjust and set up your machine to fit your soil conditions and preferences.

Adjustable Shank Depths
Running Depths range from 4" to 12"

Horsepower Needed
Each row unit weighs 500 lbs and, on average, requires 25-30 HP per row to pull

Options:

4 to 16 row machine with 20"-48" row spacing to accomodate your equipment.
Use optional planter lift assist and link arms to connect a planter and complete a one-pass tilling and planting operation
The Strip Freshener Kit allows for strip tilling in the fall and freshening in the spring
Folding bar

Specs
